Car Lift Accessories by BendPak

Screw Lift Pads (60 mm)

SKU# 5215762

Screw Lift Pad Assembly / 60 mm Pin and Polyurethane Tuf-Pad / SET OF 4


These adjustable screw lift pads give an additional 72 mm of lift to 4,082 and 4,536-kg. BendPak two-post lifts.

Adjustable Screw-Pad Lift Assembly for Two-Post Lifts
User Manual Download
Sales Sheet Download
Warranty Download

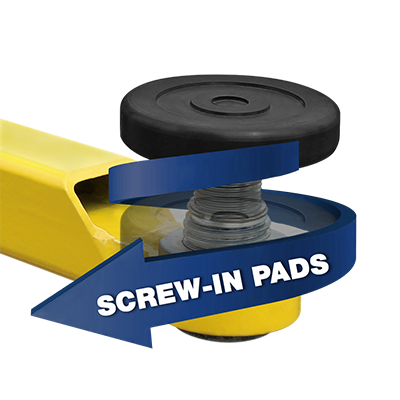

Screw Pads that Adjust to Your Needs

Adjustable Screw Lift Pads provide the operator with a greater level of vertical control when operating a BendPak 4,082-kg. or 4,535-kg. two-post car lift. Some jobs require your lift pads to be at just the right height to reach your vehicle’s lifting points. With your Screw Lift Pad adapter installed, you can fine-tune the contact points on your vehicle until it is the perfectly balanced and ready to lift.

Some vehicles have an uneven underbody which requires specialty adapters to lift your car evenly. As the name suggests, the Screw Lift Pads screw and telescope vertically up and down, allowing you to adjust the height of your two-post lift pad to an additional 76 mm of height. The two-stage telescoping technology provides you with the versatility you need to get your car in the air for difficult wrenching. In addition, Screw Lift Pads are great for customizing your lift to find the perfect height for your job. This adjustable lift pad gives you the power to find the right height for your job. And when combined with other two-post lift accessories, like the multi-height adapter pins, you have a broad variation of height ranges to choose from.

Screw Lift Pads drop easily into the arms of most 4,082-kg and 4,535-kg. two-post lifts. Like the standard BendPak Lift Pad Assembly, Screw Lift Pads feature a Polyurethane Tuf-Pad which is the ideal material for gripping your vehicle’s chassis frame to keep it from moving. This replaceable, thick rubber pad also protects your frame from damage, and is made of a sturdy material that will hold up under harsh conditions. With a variety of uses, Screw Lift Pads are the adapters you need to expand the compatibility of the two-post lift in your shop.

Features

  • Vertically adjustable screw-type lift pads
  • Fits 4,082-​kg. or​ 4,536-kg. capacity BendPak two-post lifts, except for: XPR-9-LP, XPR-10-LP and XPR-10A-LP
  • Gives additional 72 mm of fine pad adjustment
  • Rubber top screw pad includes one receiver
  • Sets of 4

Not for use on BendPak two-post ​lifts with Low-Profile Arms

Specifications and Dimensions Specifications
Warranty 5-2-1 Warranty
Lift Balancing Safety Balancing Safety
Best Car Lift Guide Best Car Lift Guide
Things to know Buying a Car Lift

Screw Lift Pads (60 mm) Specifications

Screw Lift Pads (60 mm) specs diagram
