Wheel Service Accessories by Ranger

RWL-150T

SKU# 5150355

Pneumatic Wheel Lift Fits R980XR and R980AT


Ranger's RWL-150T is the efficient, hassle-free lifting solution for heavy tire and wheel combinations. Save time, money and your technicians’ backs, all while eliminating the inefficiency and danger of lifting tires in your shop.

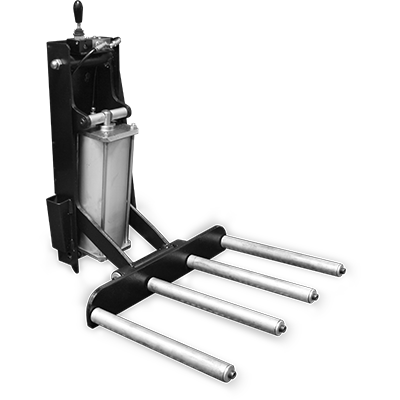

RWL-150T Pneumatic Wheel Lift fits R980XR and R980AT
User Manual Download
Sales Sheet Download
Warranty Download

Break Beads, Not Your Back

This optional wheel lift adapts easily to Ranger R980XR​ and R980AT tire changers, helping reduce workplace fatigue and minimise injuries often associated with the manual handling of heavy wheels and tires. The lever‐controlled wheel lift quickly raises your wheel and tire assembly for easy mounting on the tire changer turntable. One-handed operation means the technician’s free hand can control the wheel assembly during use. The RWL-150T pneumatic wheel lift handles wheels up to 68 kg. and takes up minimal space in your shop or garage. Perfect for home and professional use.

Features

  • Comes complete with all mounting hardware
  • Enclosed lifting carriage and cylinder protect it from dirt and other debris
  • Simple one-hand operation for raising and lowering the lift
  • Offset column gives access to lug nuts and allows unobstructed viewing of work area
  • Features air regulator, water filter and lubricator for maintenance free pneumatic operation
  • Welded steel construction
  • Powder coat finish

RWL-150T Specifications

RWL-150T specs diagram
Min. Air Supply
125 PSI (8 CFM)
Lifting Capacity
68 kg (150 lbs.)
Max. Saddle Height
711 mm (28")
Min. Saddle Height
51 mm (2")
Saddle Dimensions
445 mm x 292 mm (17.5" x 11.5")
Shipping Weight
20 kg (45 lbs.)
