Parking Lifts by BendPak

HD-973PX

SKU# 5175267

4,082-kg and 3,175-kg. Capacity / Tri-Level Parking Lift / Extended / High Lift / SPECIAL ORDER / PATENT PENDING


Supersize your parking capacity with this revolutionary tri-level parking lift from BendPak! This unique four-post parking lift design parks up to three vehicles in one space, instantly tripling your parking capacity. With an extended length and taller rise compared to the HD-973P, the HD-973PX has even more room for your longest and boxiest vehicles.

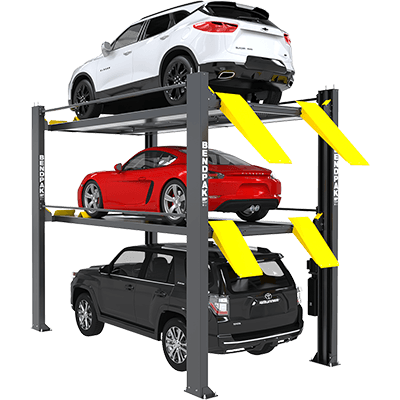

HD-973PX triple-stacker parking lift by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

The longer, higher triple decker

The tri-level HD-973PX is a four-post parking lift that maximizes your parking capacity without adding any additional real estate. Each HD-973PX houses up to three vehicles on strengthened parking platforms to give you the most space for your buck. With an additional 2,133 mm of overall height compared to the HD-973P parking lift, the HD-973PX supports some of the biggest vehicles around! This extra height, along with the additional 254 mm of runway length, gives you the perfect amount of space to fit longer and taller vehicles, while maintaining a height that will fit comfortably in most shops and garages. With the topmost platform’s weight capacity sitting at a hefty 3,175-kgs. and the lower deck handling up to 4,082-kgs., the HD-973PX is ideal for lifting even heavy-duty vehicles like full-size trucks and SUVs.

This rugged design is ready for installation indoors or outdoors, instantly tripling your parking and storing capability. The easy to use top-of-the-line design ensures that your vehicles are being lifted safely, and efficiently. Which saves you time, and worry. The safety features that come standard with any BendPak lift make sure your cars stay in the air until YOU move them, and intuitive design cycles through the cars at the push of a button. With the HD-973PX you’re getting a lift that can not only park your taller and longer vehicles, but fits comfortably and safely wherever you need it most.

Proprietary design

Shortened height columns allow this car lift to fit in low ceiling spaces where others systems can’t. Although shorter in stature than most tri-level systems, the lower space still yields a full 1,778 mm of rise.

Independent platforms

Typical multi-level car stackers include a bottom platform that is suspended from the upper platform via chains or cables—both platforms move simultaneously. This tethered operation results in limited spacing options between platforms, as the distance between platforms is fixed.

The HD-973PX features independently operated lifting platforms, permitting varied vehicle heights and spacing in either upper or lower parking spaces. Because the platforms do not have to move in unison with one another, you can now lower the bottom platform without disrupting the overhead vehicle being stored. This allows operators to control one platform at a time. Practically speaking, if you only want to swap out the second-level vehicle, you don't have to lower the top-level vehicle.

Unmatched protection

The patent-pending design of the HD-973PX features multi-position safety locks that are spaced just four inches apart. This allows almost unlimited parking height arrangements on either the upper or lower decks. Redundant, anti-fall, spring-loaded safety catches immediately halt downward movement of either platform in the unlikely event of cable failure.

Hydraulic power

A powerful hydraulic cylinder is enclosed underside each platform set and is matched with high-strength lifting cables for simplicity and dependability. The lift can be configured for drive-thru operation, allowing as many as three deep for maximum efficiency and better use of space.

Smarter construction means less cost to you

High-rise parking lifts that can fit three vehicles will inevitably cost more than other lifts. There's simply more steel involved, and larger lifts require additional engineering, all of which gets incorporated in the cost. The HD-973PX offsets much of that extra cost because its smart design requires less steel. The end result is an incredibly efficient parking lift that actually saves buyers thousands of dollars while upholding the industry's most rigid safety standards.

Weight-displacing base

Specially designed base frames distribute the load, which makes this unique lifting system suitable for installation on virtually any residential or commercial concrete floor. It can even be installed on asphalt when equipped with concrete footers. The HD-973PX may be configured as a stand-alone lift or combined into rows of multiple units.

Who should get this parking lift?

Explore the HD-973PX if you need to stack three vehicles in a tight space, or if you want the versatility to vary the parking heights of your second and third-level vehicles. The lift's small footprint and exemplary design makes for an ideal lifting solution in both professional shops and home garages.

Features

  • Extended length, high rise
  • Perfect for parking, storage and service
  • 3,175-kg. capacity upper deck
  • 4,082-kg. capacity lower deck
  • Superstructure features durable powder coat finish
  • Perfect for cars, trucks, and SUVs
  • Platforms feature full-length aluminum decking
  • Rugged welded-steel construction
  • Powerful hydraulic cylinders
  • Heavy-duty 9.5 mm lifting cable
  • Heavy-duty steel construction
  • Wide base-plate for maximum stability
  • Heavy-duty steel construction
  • Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze
  • Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture
  • Reliable electric-hydraulic power system
  • Multi-position safety locks in each column
  • Automatic safety locks combined with redundant anti-fall devices
  • Adjustable lock ladders
  • Independent backup slack-cable safety latches
  • Push-button pneumatic safety release.
  • Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
  • Simple controls
  • Optional drive-thru ramps available
  • Optional 2,041-kg. air-hydraulic rolling jacks available

HD-973PX Specifications

HD-973PX specs diagram

Style

Style:
Multi-Level Parking Lift

Capacity

Lifting Capacity:

Top Platform

Lifting Capacity*
7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle
3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle
3,500 lbs. (1,588 kg)
A - Overall Width
112" (2,84​9 mm)
B - Overall Length
252.25" (6,409 mm)
C - Height of Columns
​173" (​4,398 mm)
D - Drive-thru Clearance
87" (2,201 mm)
E - Maximum Rise
151.5" (3,​849 mm)
F - Maximum Lifting Height
156.5" (3,972 mm)
G - Distance Between Columns
100" (2,546 mm)
H - Runway Width
19" (482 mm)
I - Width Between Runways
44" (1,121 mm)
J - Runway Length
199" (​5,056 mm)
Min. Wheelbase @ rated Capacity1
1​40" (3,​556 mm)
Min. Wheelbase @ 75% Capacity1
1​20" (​3,084 mm)
Min. Wheelbase @ 50% Capacity1
​100" (2,​540 mm)
Min. Wheelbase @ 25% Capacity1
80" (2,032 mm)
Locking Positions
3​4
Locking Spacing
Every 4" (102 mm)
Lifting Time to Max. Rise
90 seconds
Motor
220 VAC / 60 Hz / 1 Ph

Bottom Platform

Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
A - Overall Width
112" (2,842 mm)
B - Overall Length
252.25" (6,409 mm)
C - Height of Columns
245" (6,227 mm)
D - Drive-thru Clearance
90.25" (2,2​95 mm)
E - Maximum Rise
​82.25" (​2,088 mm)
F - Maximum Lifting Height
87.25" (​2,211 mm)
G - Distance Between Columns
100" (2,546 mm)
H - Runway Width
19" (482 mm)
I - Width Between Runways
44" (1,121 mm)
J - Runway Length
186.75" (4,​744 mm)
Min. Wheelbase @ rated Capacity1
1​35" (3,​429 mm)
Min. Wheelbase @ 75% Capacity1
1​15" (2,​921 mm)
Min. Wheelbase @ 50% Capacity1
​95" (2,​413 mm)
Min. Wheelbase @ 25% Capacity1
7​5" (1,​905 mm)
Locking Positions
1​6
Locking Spacing
Every 4" (102 mm)
Lifting Time to Max. Rise
50 seconds
Motor
220 VAC / 60 Hz / 1 Ph

1The Lift supports less weight than its rated capacity when the vehicle’s wheelbase is shorter; this is because the wheels of such a vehicle are closer to the middle of the Runways, where there is less strength. For example, the maximum weight allowed on the Lift for a vehicle with a wheelbase of 95" is 50 percent of the Lift’s rated capacity (or 3,500 lbs. when the rated capacity is 7,000 lbs.).

Patent Pending - Applied for in the U.S. and Abroad


112" (2,849 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is may be required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
