Parking Lifts by BendPak

HD-973P

SKU# 5175238

9,000 and 7,000 Lb. Capacity / Tri-Level Parking Lift / SPECIAL ORDER / PATENT PENDING


Meet the HD-973P, whose patent-pending design allows the storage of three vehicles in a single parking space. Plus, its independent platforms mean you can park vehicles at the height of your choice. Ideal for sedans, SUV’s and full-size trucks.

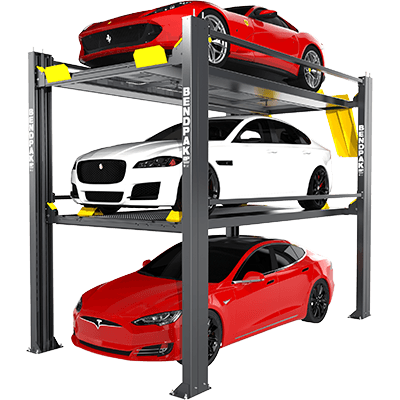

HD-973P tri-level parking lift and car stacker
User Manual Download
Sales Sheet Download
Warranty Download

Patent Pending - Applied for in the U.S. and Abroad

The Easy Triple

The HD-973P by BendPak is a four-post parking lift that offers a cost-effective way to triple the capacity of typical parking areas. Our patent-pending design can be used indoors or outdoors, and this lift allows the storage of three vehicles in a single parking space. The upper platform accommodates vehicles weighing up to 7,000 lbs., and the lower deck heftily handles up to 9,000 lbs. This is the perfect mechanical parking system for sedans, SUVs and full-size trucks.

While triple-stacking parking lifts are incredibly useful tools, most examples of this type of structure are too tall for many shops and garages. That's why we invented the HD-973P. It is an incredibly unique parking lift that fits in more spaces than any other triple-stacker. The secret to its success: Its specially engineered design lacks cumbersome mechanisms that project high over the top of the lift. This eliminates several feet of lift structure while maintaining a safe, stable and revolutionary design.

Proprietary design

Shortened height columns allow this car lift to fit in low ceiling spaces where others systems can’t. Although shorter in stature than most tri-level systems, the lower space still yields a full 70 inches of rise.

Independent platforms

Typical multi-level car stackers include a bottom platform that is suspended from the upper platform via chains or cables—both platforms move simultaneously. This tethered operation results in limited spacing options between platforms, as the distance between platforms is fixed.

The HD-973P features independently operated lifting platforms, permitting varied vehicle heights and spacing in either upper or lower parking spaces. Because the platforms do not have to move in unison with one another, you can now lower the bottom platform without disrupting the overhead vehicle being stored. This allows operators to control one platform at a time. Practically speaking, if you only want to swap out the second-level vehicle, you don't have to lower the top-level vehicle.

Unmatched protection

The patent-pending design of the HD-973P features multi-position safety locks that are spaced just four inches apart. This allows almost unlimited parking height arrangements on either the upper or lower decks. Redundant, anti-fall, spring-loaded safety catches immediately halt downward movement of either platform in the unlikely event of cable failure.

Hydraulic power

A powerful hydraulic cylinder is enclosed underside each platform set and is matched with high-strength lifting cables for simplicity and dependability. The lift can be configured for drive-thru operation, allowing as many as three deep for maximum efficiency and better use of space.

Smarter construction means less cost to you

High-rise parking lifts that can fit three vehicles will inevitably cost more than other lifts. There's simply more steel involved, and larger lifts require additional engineering, all of which gets incorporated in the cost. The HD-973P offsets much of that extra cost because its smart design requires less steel. The end result is an incredibly efficient parking lift that actually saves buyers thousands of dollars while upholding the industry's most rigid safety standards.

Weight-displacing base

Specially designed base frames distribute the load, which makes this unique lifting system suitable for installation on virtually any residential or commercial concrete floor. It can even be installed on asphalt when equipped with concrete footers. The HD-973P may be configured as a stand-alone lift or combined into rows of multiple units.

Who should get this parking lift?

Explore the HD-973P if you need to stack three vehicles in a tight space, or if you want the versatility to vary the parking heights of your second and third-level vehicles. The lift's small footprint and exemplary design makes for an ideal lifting solution in both professional shops and home garages.

Patent Pending - Applied for in the U.S. and Abroad

Features

  • Perfect for parking, storage and service
  • 7,000 lb. capacity upper deck
  • 9,000 lb. capacity lower deck
  • Superstructure features durable powder coat finish
  • Perfect for cars, trucks, and SUVs
  • Platforms feature full-length aluminum decking
  • Rugged welded-steel construction
  • Powerful hydraulic cylinders
  • Heavy-duty 3/8” lifting cable
  • Heavy-duty steel construction
  • Wide base-plate for maximum stability
  • Heavy-duty steel construction
  • Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze
  • Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture
  • Reliable electric-hydraulic power system
  • Runways feature non-skid surface
  • Multi-position safety locks in each column
  • Automatic safety locks combined with redundant anti-fall devices
  • Adjustable lock ladders
  • Independent backup slack-cable safety latches
  • Push-button pneumatic safety release.
  • Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
  • Simple controls
  • Optional drive-thru ramps available
  • Optional 4,500-lb. air-hydraulic rolling jacks available

HD-973P Specifications

HD-973P specs diagram

Style

Style:
Multi-Level Parking Lift

Capacity

Lifting Capacity:

Top Platform

Lifting Capacity*
7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle
3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle
3,500 lbs. (1,588 kg)
A - Overall Width
112" (2,833 mm)
B - Overall Length
242" (6,141 mm)
C - Height of Columns
161" (4,093 mm)
D - Drive-thru Clearance
86.5" (2,201 mm)
E - Maximum Rise
139" (3,531 mm)
F - Maximum Lifting Height
145" (3,683 mm)
G - Distance Between Columns
100" (2,546 mm)
H - Runway Width
19" (482 mm)
I - Width Between Runways
44.5" (1,130 mm)
J - Runway Length
188" (4,788 mm)
Min. Wheelbase @ rated Capacity1
135" (3,429 mm)
Min. Wheelbase @ 75% Capacity1
115" (2,921 mm)
Min. Wheelbase @ 50% Capacity1
95" (2,413 mm)
Min. Wheelbase @ 25% Capacity1
80" (2,032 mm)
Locking Positions
31
Locking Spacing
Every 4" (102 mm)
Lifting Time to Max. Rise
90 seconds
Motor
220 VAC / 60 Hz / 1 Ph

Bottom Platform

Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
A - Overall Width
112" (2,833 mm)
B - Overall Length
200" (5,080 mm)
C - Height of Columns
161" (4,093 mm)
D - Drive-thru Clearance
86.5" (2,201 mm)
E - Maximum Rise
69.5" (1,765 mm)
F - Maximum Lifting Height
74.5" (1,892 mm)
G - Distance Between Columns
100" (2,546 mm)
H - Runway Width
19" (482 mm)
I - Width Between Runways
44.5" (1,130 mm)
J - Runway Length
176" (4,470 mm)
Min. Wheelbase @ rated Capacity1
125" (3,175 mm)
Min. Wheelbase @ 75% Capacity1
105" (2,667 mm)
Min. Wheelbase @ 50% Capacity1
85" (2,159 mm)
Min. Wheelbase @ 25% Capacity1
70" (1,778 mm)
Locking Positions
13
Locking Spacing
Every 4" (102 mm)
Lifting Time to Max. Rise
50 seconds
Motor
220 VAC / 60 Hz / 1 Ph

1The Lift supports less weight than its rated capacity when the vehicle’s wheelbase is shorter; this is because the wheels of such a vehicle are closer to the middle of the Runways, where there is less strength. For example, the maximum weight allowed on the Lift for a vehicle with a wheelbase of 95" is 50 percent of the Lift’s rated capacity (or 3,500 lbs. when the rated capacity is 7,000 lbs.).

Patent Pending - Applied for in the U.S. and Abroad

Note: An air supply (minimum: 30 psi / 3 CFM) is may be required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
