4-Post Bridge Jacks by BendPak

RBJ25000

SKU# 5175033

11,340-kg. Capacity / Rolling Bridge Jack


This is our most powerful rolling bridge jack ever, with 11,340-kg. of muscle meant to service some of the biggest commercial fleets on earth. Use this jack on the 18,144-kg. capacity HDS40 truck lift to perform wheel service on almost any heavy-duty vehicle on wheels.

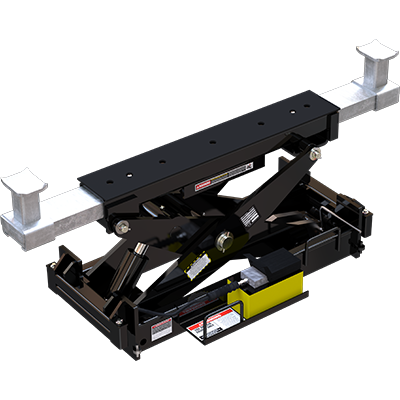

Rolling Bridge Jack for a Four-Post Lift RBJ25000 by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

Lift 11,340-kg. for Full Wheel Service Capability

Two RBJ25000 rolling bridge jacks will handle a vehicle up to 22,680 kg. That means these jacks are over-engineered to handle offset centres of gravity on extremely heavy vehicles. Who might need bridge jacks of this calibre? For one, heavy-duty trucks and buses tend to require a bridge jack rated for more than half of the overall vehicle weight. Generally speaking, if you can safely lift a vehicle with the HDS40, you can safely perform wheel service with the RBJ-25000 rolling bridge jack.

Rubber contact pads

The point of contact on your vehicle frame is the most important part of lifting. So, we make the  rubber contact pads on our bridge jacks hard and durable enough to lift the monsters in your shop. Heavy-duty fleets are no problem for the RBJ25000.

Stackable adapters

All those firetrucks, dumpster trucks, Greyhound™ Buses, etc. have extended lift points and raised chassis. That’s why we include a stackable adapter set with every bridge jack sold. We also recommend you consider the optional truck adapter set, whose frame cradle design ensures heavy frames down shift off the lift pad.

High-pressure hydraulic power unit

A powerful pneumatic-hydraulic power unit creates a dedicated power source for the rolling bridge jack. Two jacks will have separate airlines that can connect together on an airline kit. The foot pedal is air-powered, so a few simple pushes and the jack is fully lifted.

Three lock levels

Lift to three lock positions for your convenience. The higher the jack, the more undercarriage clearance you get on your four-post lift. Every rolling bridge jack offers premium safety standards at every lock position. The RBJ25000 is over-engineered to easily raise 11,340-kg. (25,000 lbs.) in seconds flat.

Features

  • 11,340-kg. lifting capacity
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit
RBJ25000 specs diagram

Capacity

Lifting Capacity*
25000

Rise

A - Max. Height + Pad Only:
23
B - Max. Height + Pad + Adapter:
26
C - Min. Height + Pad Only:
17
D - Min. Height + Pad + Adapter:
18
Time to Full Rise:
45 seconds

Reach

F - Support Arm Width:
44.9 -
G - Max. Arm Reach:
63.5
H - Min. Arm Reach:
39.5

Power Unit

Motor:
Air-Hydraulic Pump
Noise:
45 dB

Shipping

Weight:
802
Dimensions:
36" x 22" x 21" / 914 mm x 559 mm x 533 mm

Included commercial-grade air-hydraulic pump requires 125 psi and 10 – 20 CFM.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
