Four-Post Lifts by BendPak

HDS-35X

SKU# 5175168

15,876-kg. Capacity / Four-Post Lift / Extended


This incredible four-post truck lift handles Class 8 - 9 trucks, buses and military craft. Extended-length vehicles have 8,204 mm of runway to work with, which is perfect for virtually everything in this weight class.

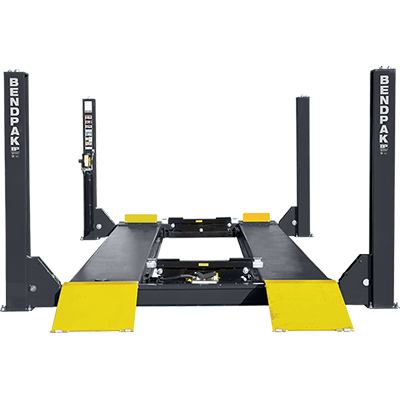

HDS-35X Four-Post Truck Lift with Extended Length Runways by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

Our Extended-Length ​15,876-kg. Truck Lift

Get ready to lift some massive vehicles. If you need a 15,876-kg. capacity truck lift with significantly extended runways, the HDS35X is just the ticket to smoothly handle wide wheel bases, extended dimensions and virtually every truck in this weight class. Roadside truck repair stations and full-sized commercial fleets want to be ready for virtually anything. Government contractors should consider this lift for military applications. Tanks and military transport vehicles are some of the most valuable machines in the world, and we're proud that our nation's private shops, as well as government entities, routinely trust the nation's finest with BendPak's best.

Super-long runways

Massive 8,204 mm runways are ideal for commercial fleets of all kinds. There aren't many semis or military land crafts that this lift can't accommodate. Most shops won't have a machine this size in the bay, so if trucks are in your wheelhouse, this car lift will set you apart from the rest.

Dual-hub cable sheaves

We put all our engineering prowess into keeping the HDS35X. After all, this is an incredibly heavy-duty lift, and on top of that, the runways are much longer than the ones on our standard-length model. To relieve pressure of the columns and ensure years of reliable lifting (decades, in many cases), BendPak utilizes 305 mm diameter cable sheaves with 102 mm axles. At that size, they're unlikely to wear out or ever need maintenance.

Large base plates

Our heaviest-duty 305 mm x 305 mm base plates handle all 15,876-kg. of daily stress we expect you to put on this truck lift. Wider bases reduce stress put on the columns, and we promise to match the superior lifting power you need with the sturdiest structure money can buy.

Spring-loaded safety locks

Auto-engaging locks click into place as the lift rises. All locks connect simultaneously, thanks to a built-in flow divider that moves the platforms evenly. With the push of a button, all locks release together for a safe descent.

Secondary lock system

A secondary cable-slack detection system activates the moment slack is detected in the cables, safely stopping and locking the platforms in place until operators can figure out what's wrong. Of course, these failures are practically unheard of when lifts are properly used and maintained. We don't want here to be any question that the HDS35X offers best-in-class power and safety standards. Many other "top" brands don't even both with secondary safety locks, sadly.

Rolling bridge jacks

The RBJ25000 is an incredibly powerful bridge jack that lifts up to 11,340-kg. in just a few easy pumps. Massive trucks and commercial vehicles are often unbalanced—their centers of gravity aren't dead-center on the vehicles. We over-engineered this jack to ensure that operators can safely lift an entire semi-truck with just two jacks, without straining the jack, your back or dropping the truck.

Features

  • 15,876-kg. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Extended-length runways
  • Supersized 305 mm diameter cable sheaves
  • Galvanized lifting cables
  • Grease nipples
  • Single hydraulic under-runway cylinder
  • Integrated flow restrictor
  • Durable powder coat
  • Spring-loaded safety locks
  • Second lock system on constant guard
  • Fully enclosed lifting cables
  • Multiple adjustable height locking positions
  • Maintenance-free electric hydraulic power system
  • Conveniently positioned operator controls
  • 305 mm x 305 mm base plates
  • Non-skid runways
  • Optional rolling jacks
  • HDS-35X Specifications

    HDS-35X specs diagram

    Capacity

    Lifting Capacity*
    35000
    *Max Capacity / Front Axle
    17500
    *Max Capacity / Rear Axle
    17500

    Rise

    A - Min. Runway Height:
    8.5
    B - Max. Rise:
    60
    C - Max. Lifting Height:
    68.5
    Time to Full Rise:
    75 seconds

    Outside Dimensions

    D - Overall Width:
    154
    E - Outside Length:
    317
    F - Overall Length:
    357
    G - Height of Columns:
    93

    Inside Dimensions

    H - Width Between Columns:
    134
    I - Drive-Thru Clearance:
    109

    Runways

    J - Runway Width:
    28
    K - Length of Runways:
    323
    L - Width Between Runways:
    36 or 47
    M - Runway Centerline:
    64 or 75
    N - Outside Edge of Runways:
    92 or 103

    Minimum Wheelbase

    Rated Capacity:
    230
    75% Capacity:
    195
    50% Capacity:
    165
    25% Capacity:
    130

    Locking

    Locking Positions:
    9
    Lock Spacing:
    Every 6" (152 mm)

    Power Unit

    Motor:
    220 VAC / 60 Hz / 1 Ph
    Noise:
    45 dB

    Shipping

    Weight:
    Dimensions:

    Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

    Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
