Four-Post Lifts by BendPak

HD-9XW

SKU# 5175863

4,082-kg. Capacity / Four-Post Lift / Standard Width / High Lift


The HD-9XW is a standard width, extra-tall lift that offers ample overhead clearance and enough side room to park light-duty trucks, SUVs and virtually all low ground-clearance vehicles.

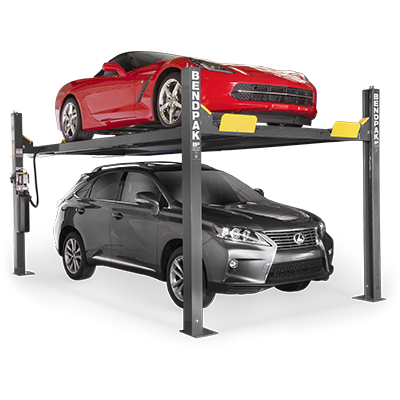

HD-9XW Four-Post Lift with Standard Width and Tall Lift by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

The ​Four-Post ​Lift with Standard Width and Extra Height

When your garage isn’t cramped for space, you have more lifting options. The HD-9XW is made for the garage with a generous ceiling and average room on the sides. Unlike our narrow-width HD-9ST four-post lift, this model comfortably holds wide-body trucks and SUVs without you having to worry about scratching up the mirrors or doors. With 2,082 mm of rise out of the runways, you can lift those heavy machines higher, leaving more room for taller mechanics to operate underneath. There’s also more room to park high-clearance trucks and SUVs. This eliminates the disappointment of buying a new lift and discovering your taller vehicle won’t even fit underneath.

The only way to get more width than this is to check out BendPak’s HD-9SW, a super-wide lift. We’re proud to be able to say the HD-9XW is arguably one of our most versatile and user-friendly lifts for serious DIY’ers and shop owners. The extra ceiling clearance you need means this car lift is generally the found as the property of daily wrenchers with dedicated service garages.

However, if you’re just looking for vehicle storage and want ample space for your lower-level vehicle, this lift is an ideal choice. The HD-9XW is completely certified according to the ANSI/ALI ALCTV-2011 standard. That’s why this lift is seen in shops nationwide and across the globe. There’s no “safer” car lift rating, and only BendPak offers that quality and many other built-in safety features (slack-cable locks, single-point lock release, non-slip runways, magnificent power coat finishing, etc.) with a warranty so good, we trademarked it!

*Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2011 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

Features

  • 4,082-kg. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Freestanding design
  • High-rise
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric-hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 9.5 mm aircraft cable
  • Rugged 32 mm roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles available
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional ​2,041-kg. air / hydraulic rolling jacks available (Model RJ-45)
  • ETL Approved

HD-9XW Specifications

HD-9XW specs diagram

Capacity

Lifting Capacity*
9000
*Max Capacity / Front Axle
4500
*Max Capacity / Rear Axle
4500

Rise

A - Min. Runway Height:
4.5
B - Max. Rise:
82
C - Max. Lifting Height:
86.5
Time to Full Rise:
50 seconds

Outside Dimensions

D - Overall Width:
110.25
E - Outside Length:
198
F - Overall Length:
224
G - Height of Columns:
100

Inside Dimensions

H - Width Between Columns:
100.25
I - Drive-Thru Clearance:
86.5

Runways

J - Runway Width:
19
K - Length of Runways:
188
L - Width Between Runways:
37.5 or 44.375
M - Runway Centerline:
56.5 or 63.375
N - Outside Edge of Runways:
75.5 or 82.375

Minimum Wheelbase

Rated Capacity:
135
75% Capacity:
115
50% Capacity:
95
25% Capacity:
80

Locking

Locking Positions:
12
Lock Spacing:
Every 4" / 102 mm

Power Unit

Motor:
220 VAC / 60 Hz. 1Ph.
Noise:
45 dB

Shipping

Weight:
2,040
Dimensions:
204" x 22" x 40" / 5,182 mm x 559 mm x 1,016 mm

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
