Four-Post Lifts by BendPak

HD-9XL

SKU# 5175859

4,082-kg. Capacity / Four-Post Lift / Standard Width / Extended Length


The HD-9XL is the ideal 4,082-kg. capacity four-post lift for vehicles with longer wheelbases. In fact, the runways are about two feet longer than the runways on the standard HD-9. This 4-post lift variety is available with optional casters, dip-trays, jack platform and more.

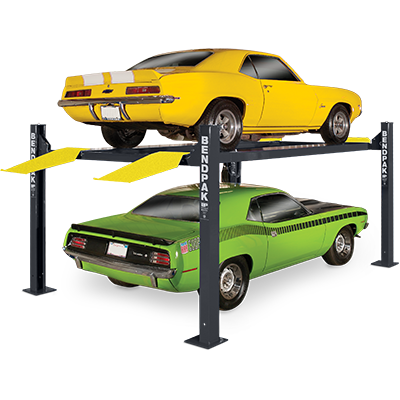

HD-9XL Four-Post Lift with Extended-Length Runways by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

The Most Dependable Extended-Length Lift in its Class

The HD-9XL four-post lift offers ample drive-thru clearance and lift height, but it features extended runways to accommodate longer wheelbases. It may be the width of a typical parking space, but this lift truly gets the most out of your valuable floor space. Use it for storing cars, trucks, ATVs, snowmobiles, jet skis, golf carts and just about anything with four wheels. All you need is an 2.44 m ceiling, and this car lift makes use of all that empty space you’re currently wasting. An optional caster kit allows you to roll the lift anywhere you need it. Put simply, this four-post lift provides a vehicle maintenance and parking solution that no other lift in its class can offer. The only way to lift those longer vehicles is to invest in the BendPak HD-9XL.

Dual-hub cable sheaves

Rugged, dependable dual-hub cable sheaves are found on every BendPak, but not every lift out there has them. Why? They cost more to manufacture. That small extra cost is technically avoidable, but there’s a reason BendPak lift

Multi-level locking positions

Whether you keep your four-post lift at home or operate from a professional shop, there’s no “one” perfect height for parking or service. Every few inches, the HD-9XL offers another mechanical lock position. This means you get to park low or high-clearance vehicles at just the right height. Plus, different technicians get to choose the working height that works for them.

Heavy-duty aircraft cable

Boasting a 6,350-kg. weight capacity per cable, this four-post lift’s four cables can support 640% of the lift’s rated capacity. All cables run within the columns, out of sight but never inaccessible for regularly scheduled safety inspections.

Electric-hydraulic power system

A BendPak power unit never requires maintenance. The controls are easy to access for your convenience. Plus, lifting, lowering or stopping the vehicle is as easy as pressing a button.

Large base plates

This four-post lift features large, 254 mm x 305 mm base plates that can be bolted for extra stability or left unbolted for the caster kit. Either way, the larger surface area of the plates ensures everything you lift and lower will remain safe and stable at all times.

Caster kit

Our 4-piece caster kit is the perfect addition to every model in the HD-9 series. It essentially turns a planted object into a mobile work station, which is extremely convenient for dozens of applications. Need to move your lift into the middle of your garage for a job? Just roll it out and roll it back when you’re done.

Integrated design

BendPak protects the integrity of your four-post lift by ensuring all moving parts stay on the inside of the columns. That includes the cables, safety latches and dual-hub cable sheaves. Other companies keep them on the outside, claiming it’s for safety reasons. The truth is that’s just an easier way to design the lift, not a smarter way. Internal components are easy to service and have the benefit for staying protected by the surrounding steel.

Low-deck runways

The HD-9XL car lift features low-profile runways that rise just ​114 mm off the ground when lowered. Our simple, elegant design makes it easier to lift low-stance cars.

Longer approach ramps

The low runways of this four-post lift are complemented by extended approach ramps. Now you can load vehicles that practically scrape the ground. Just drive on, relax and lift!

Automatic safety locks

Mechanical locks are essential safety components on a BendPak four-post lift. The runways, connected to the lift carriages, automatically engage the locks as the lift ascends. Plus, a backup cable slack detection system will immediately stop the vehicle in the rare event of a cable failure or the development of excess slack.

Features

  • 4,082-kg. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Wide drive-thru with standard lift height and long runways
  • Electric / hydraulic power system
  • Internal "Anti-Sway" slider blocks in each column
  • Features heavy-duty ​9.5 mm aircraft cable
  • Multi-position safety locks in each column
  • Ramps feature non-skid surface
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder underneath runway
  • Oversized self-lubricating cable rollers
  • Rugged ​32 mm roller axles
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Optional 2,041-kg. capacity jack available (Model RJ-45)

HD-9XL Specifications

HD-9XL specs diagram

Capacity

Lifting Capacity*
9000
*Max Capacity / Front Axle
4500
*Max Capacity / Rear Axle
4500

Rise

A - Min. Runway Height:
4.5
B - Max. Rise:
70
C - Max. Lifting Height:
74.5
Time to Full Rise:
50 seconds

Outside Dimensions

D - Overall Width:
110.25
E - Outside Length:
198
F - Overall Length:
224
G - Height of Columns:
88

Inside Dimensions

H - Width Between Columns:
100.25
I - Drive-Thru Clearance:
86.5

Runways

J - Runway Width:
19
K - Length of Runways:
188
L - Width Between Runways:
37.5 or 44.375
M - Runway Centerline:
56.5 or 63.375
N - Outside Edge of Runways:
75.5 or 82.375

Minimum Wheelbase

Rated Capacity:
135
75% Capacity:
115
50% Capacity:
95
25% Capacity:
80

Locking

Locking Positions:
15
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
2,040 lbs. (927 kg)
Dimensions:
204" x 22" x 40" (5,182 mm x 559 mm x 1,016 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
