HDSO14P

SKU# 5175152

6,350-kg. Capacity / Four-Post Lift / Open-Front


The HDSO14P is a legendary 6,350-kg. capacity open-front four-post car lift that allows easy entry and exit beneath a vehicle. It is available with optional drive-thru ramps, drip trays and rolling jacks.

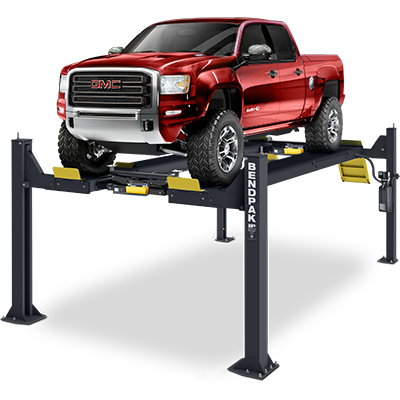

HDSO14P Open-Front Four-Post Lift by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

Open-Front Capability in a Powerful Four-Post Lift

The HDSO14P is an open-front four-post lift that features clear entry upfront, providing easy vehicle access. A generous 6,350-kg. lifting capacity and extended runways allow you to service a wide variety of vehicles, ranging from small cars to full-size trucks.

Open-front design

We engineered the HDSO14P without a front cross bar, so operators can easily enter and exit from beneath the vehicle. Now the process of front-end adjustment becomes quick and trouble-free. This model is a must-have for busy alignment bays.

Patented, adjustable front outrigger tubes

For precise front-lift leveling, nothing beats our patented adjustable front outrigger tubes. The infinitely adjustable pitch compensates for excessive loads and unlevel floors.

Dependable design

Four heavy-duty, high-quality, stainless steel lifting cables and a single hydraulic cylinder mounted underneath the runway make this lift the most durable, maintenance-free lifting system on the market.

Oversize dual-hub cable sheaves

Huge ​267 mm diameter cable sheaves within the runway and cross tubes work with massive ​57 mm diameter sheave axles to improve cable wear and critical component lifespan. Dual‐hub cable sheaves reduce stress, fatigue and wear. Naturally, this means a lot less money in service-related expenses down the road.

Multi-level locking positions

The HDSO14P is equipped with multiple adjustable height locking positions for variable-height parking. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.

Heavy-duty aircraft cable

Each lift is supplied with four high-quality ​13 mm diameter, ​153 mm x ​635 mm stainless steel lifting cables rated at ​6,531 kg. each. The combined rating of these cables is more than 411% of the maximum lifting capacity of the entire lift! This aircraft‐quality cable was specifically designed for lifting applications and provides a great balance between abrasion resistance and fatigue.  And we make sure it looks tidy too—all lifting cables are fully enclosed within the lift structure itself.

Maintenance-free electric hydraulic

A maintenance‐free electric hydraulic power system assures ultimate dependability.

Grease nipples

Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze.

Electric / hydraulic power system

We incorporate maintenance-free electric hydraulic power systems into each lift for ultimate dependability, and all controls are conveniently located within close reach.

Large base plates

305 mm x 254 mm base plates provide a solid foundation for the HDSO14P.

Non-skid runways

This car lift gives you maximum grip, even when the runway surface is wet or oily.

Longer approach ramps

These approach ramps were designed a little longer to help when loading low ground-clearance vehicles. It’s the little bit that makes a big difference.

Integrated design

Lifting cables, airlines, safety latches and sheaves are all fully enclosed.

Integrated hydraulic flow

An integrated hydraulic flow restrictor provides a controlled descent in the unlikely event of an unexpected hose rupture.

Automatic safety locks

Aircraft-quality stainless steel and aluminum pneumatic cylinders release all four locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.

Optional 3,175-kg. capacity rolling jacks

The optional ​3,175-kg. capacity rolling bridge jack (the R​BJ7000) lets operators perform full wheel and brake service to vehicles. They sit along the inner edges of each runway, engage the lift points and quickly lift the wheels off the ramps. These are essential tools for anyone who wants to get the most out of their four-post lift.

Features

  • 6,350-kg. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Huge cable sheaves reduce wear and tear
  • Extremely convenient open-front design for easy access
  • Extended runway length for servicing
  • Longer approach ramps for low ground clearance vehicles
  • Electric / hydraulic power system
  • Runways include rail-kit for optional accessories
  • Runways adjust for different tread widths
  • Automatic leveling system with multiple auto-leveling locking positions
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks, and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Features heavy-duty 13 mm aircraft cable
  • Safety locks enclosed in columns minimize pinch points
  • Oversized sheave diameter reduces cable fatigue
  • Runways feature non-skid surface
  • Rugged, self-lubricating cable sheaves
  • Features 25 mm sheave axles
  • Multi-position safety locks in each column
  • Independent backup slack-cable safety latches
  • Includes fully adjustable lock stops for precise leveling
  • Integrated rolling bridge airline kit option available
  • Roll-back kit options available
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional ​3,175-kg. capacity rolling jacks available (Model RJ-7)

HDSO14P Specifications

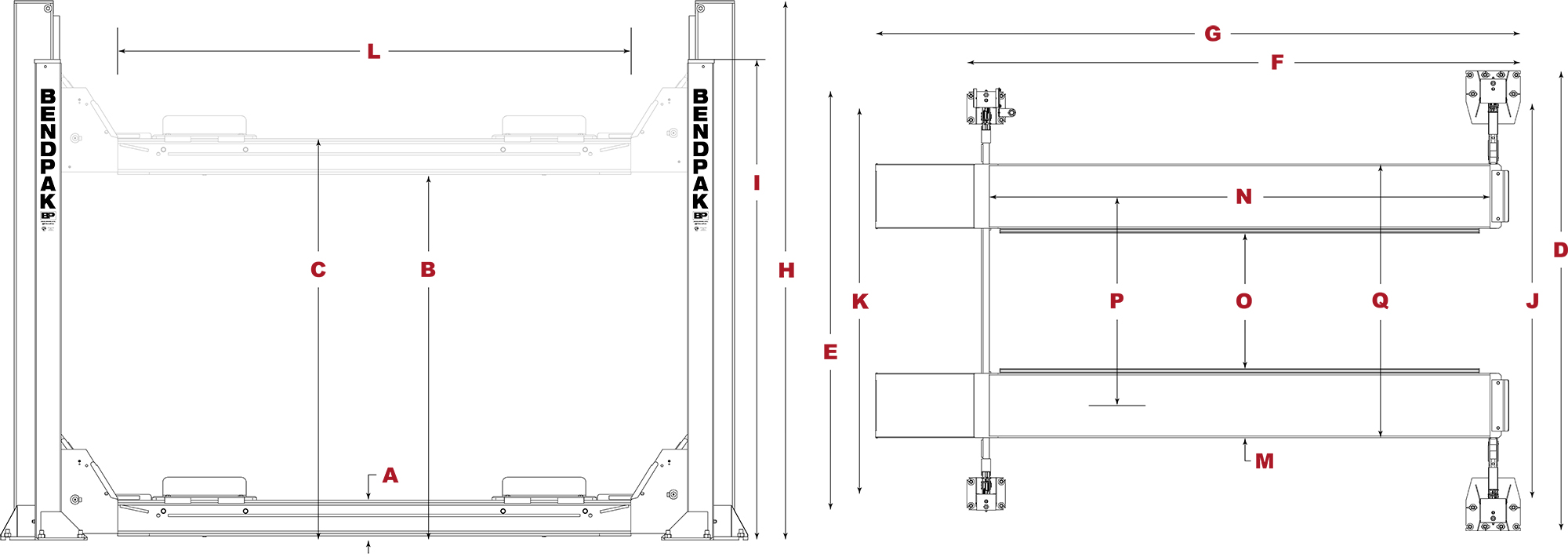

HDSO14P specs diagram

Capacity

Lifting Capacity*
14000
*Max Capacity / Front Axle
7000
*Max Capacity / Rear Axle
7000

Rise

A - Min. Runway Height:
7.625
B - Max. Rise:
70
C - Max. Lifting Height:
77.625
Time to Full Rise:
60 seconds
D - Overall width (FRONT)
143” (3,632 mm)
E - Overall Width (REAR)
130” (3,301 mm)
F - Outside Length
215.5" (5,473 mm)
G - Overall Length
244" (6,198 mm)
H - Height of Columns (FRONT)
105" (2,664 mm)
I - Height of Columns (REAR)
103” (2,613 mm)
J - Width Between Columns (FRONT)
123” (3,124 mm)
K - Width Between Columns (REAR)
120” (3,046 mm)
L - Drive-Thru Clearance
97” (2,464 mm)
M - Runway Width
20" (508 mm)
N - Length of Runways
199" (5,054 mm)
O - Width Between Runways
45" (1,143 mm)
P - Runway Centerline
65" (1,651 mm)
Q - Outside Edge of Runways
85" (2,159 mm)

Outside Dimensions

D - Overall Width:
E - Outside Length:
F - Overall Length:
G - Height of Columns:

Inside Dimensions

H - Width Between Columns:
I - Drive-Thru Clearance:

Runways

J - Runway Width:
K - Length of Runways:
L - Width Between Runways:
or
M - Runway Centerline:
or
N - Outside Edge of Runways:
or

Minimum Wheelbase

Rated Capacity:
140
75% Capacity:
120
50% Capacity:
100
25% Capacity:
80

Locking

Locking Positions:
13
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
Dimensions:

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
