Four-Post Lifts by BendPak

HD-9SWX

SKU# 5175024

4,082-kg. Capacity / Four-Post Lift / Dual Platform / Super Wide / Extended-Length

HD-9SWX is ideal for anyone who wants a little extra standing room under their lift. Plus, the runways are 609 mm longer than our standard-length HD-SW. Park up to four cars, trucks and SUVs, and enjoy servicing two raised vehicles in a single lift.

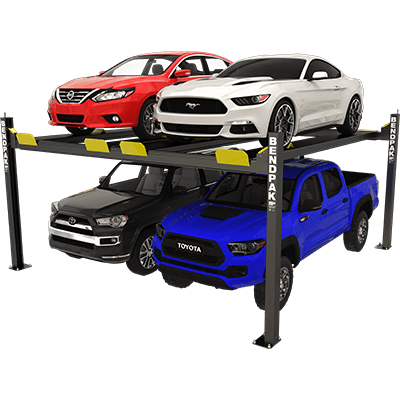

HD-9SWX Four-Post Lift with Extended Runways by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

The Ultimate Extended-Length, High-Rise, Double-Wide Car ​Lift

If you're looking for a little more lifting height, extended-length runways and a lot less column interference, then our HD-9SWX four-post lift is the answer. This super-wide, extended-length model is designed to transform your garage into a state-of-the-art parking facility. It turns that two-car space into a four-car trophy stand. The HD-9SWX is an extended length model with higher rise to provide exceptional clearance underneath. The extra dimensions are particularly useful for parking or servicing long-wheelbase vehicles,

The best thing about this car lift is how easy it is to use. Low-stance vehicles glide onto the runways without risking damage to the chassis. It’s a smart solution for family garages and professional spaces. Auto shops sometimes prefer large lifts like the HD-9SWX because their techs need equipment that allows them to work on virtually anything that rolls through their doors. The ​4,082-kg. capacity of this lift (​2,041-kg. max per car, per side) covers sedans and sports coupes. If you do need to step up into the next category of lifting, BendPak has four-post lift options, from the 6,350-kg. capacity HDS-14 series to the 18,143-kg. capacity HDS-40.

The HD-9SWX is an ALI Certified Car Lift
A Study in Lift Design

Study in Lift Design

Lift comparisons and more
Specifications and Dimensions

Specifications

Download the latest specs
BendPak 5-2-1 Warranty

Warranty

Covered by 5-2-1 warranty
Car Lift Balancing Safety

Balancing Safety

Finding center of balance
Best Car Lift Guide

Best Car Lift Guide

Introduction to car lift types
Top 10 Things to Know Before Buying a Car Lift

Things to Know

Before buying a car lift

Features

  • 4,082-kg. maximum lifting capacity
  • Freestanding design
  • Perfect for parking, storage and service
  • Double-wide configuration for quad-vehicle storage
  • Four runways
  • Super-tall rise
  • Extra-long ramp
  • Runways accommodate wide or narrow vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Oversized sheave diameter reduces cable fatigue
  • High-speed lifting
  • Features heavy-duty ​9.5 mm aircraft cable
  • Rugged ​32 mm roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Inside runways adjust for different tread widths
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional ​2,041-kg. air / hydraulic rolling jacks available

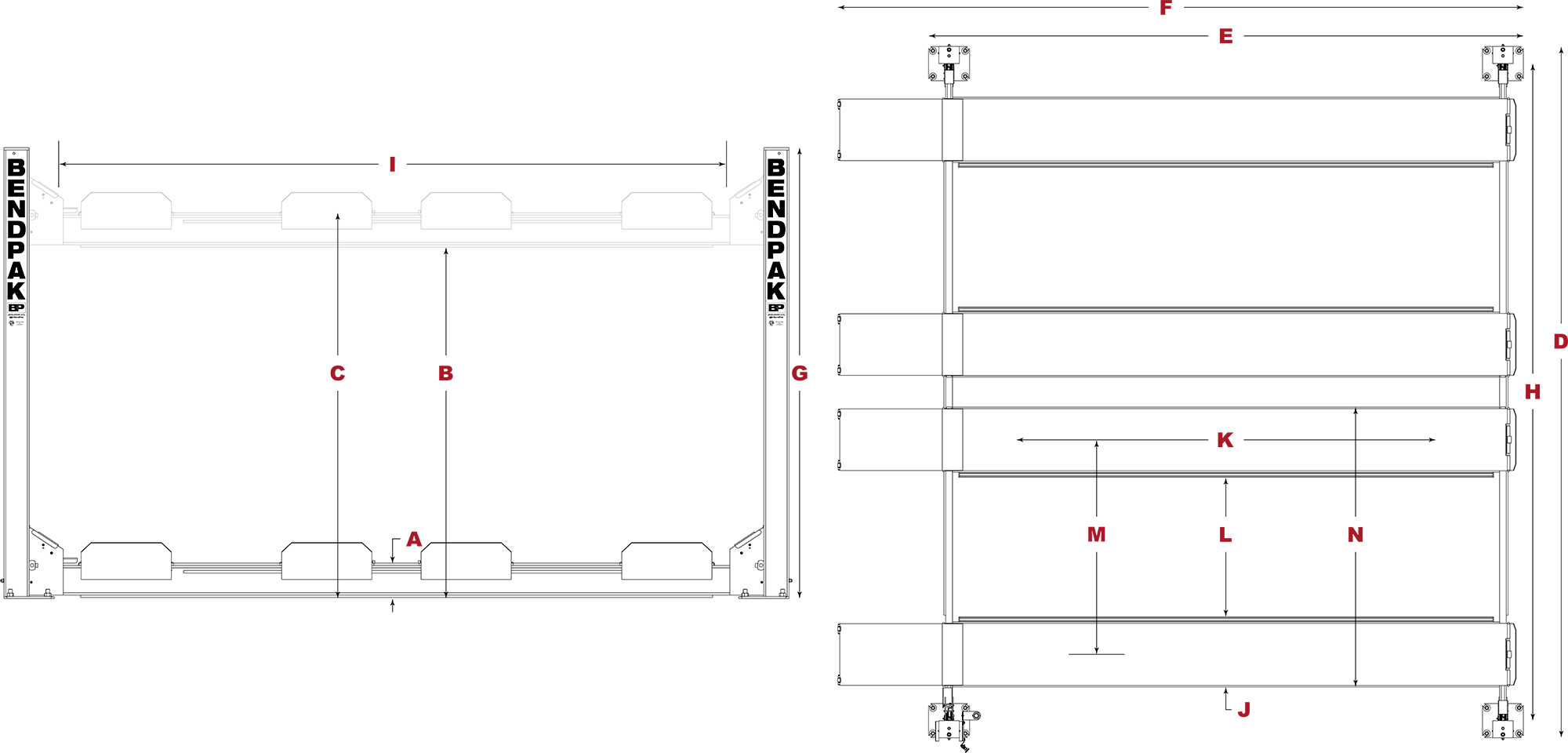

HD-9SWX Specifications

HD-9SWX specs diagram

Capacity

Lifting Capacity*
9,000
*Max Capacity / Front Axle
4,500
*Max Capacity / Rear Axle
4,500

Rise

A - Min. Runway Height:
7
B - Max. Rise:
82
C - Max. Lifting Height:
89
Time to Full Rise:
65 seconds

Outside Dimensions

D - Overall Width:
202
E - Outside Length:
198
F - Overall Length:
224
G - Height of Columns:
102

Inside Dimensions

H - Width Between Columns:
192
I - Drive-Thru Clearance:
178

Runways

J - Runway Width:
19
K - Length of Runways:
188
L - Width Between Runways:
37 or 42
M - Runway Centerline:
56 or 61
N - Outside Edge of Runways:
75 or 80

Minimum Wheelbase

Rated Capacity:
135
75% Capacity:
115
50% Capacity:
95
25% Capacity:
80

Locking

Locking Positions:
16
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
3,892 lbs. (1,769 kg)
Dimensions:
216" x 24" x 48" / 5,486 mm x 610 mm x 1,219 mm

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
