Four-Post Lifts by BendPak

HD-7PXW

SKU# 5175516

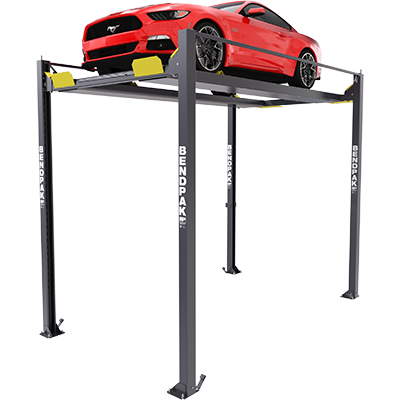

3,175-kg. Capacity Super-Tall Four-Post Lift / Vehicle Display Platform


The HD-7PXW is a literal giant. This four-post lift is also a magnificent display platform that will effortlessly lift up to 3,175 kg. over 3.65 m into the air! Specially made for dealers, it's perfect for stacking taller vehicles and getting them seen!

HD-7PXW is a Four-Post Lift that doubles as a display lift
User Manual Download
Sales Sheet Download
Warranty Download

Amazingly Tall ​Four-Post Lift

The HD-7PXW four-post lift has a 3,175-kg. hoist capacity and 4,775 mm long runways to accommodate a variety of vehicle types and wheelbases.

Same great benefits as other hoists

The HD-7PXW has all the same safety and convenience features as other BendPak four-post lifts. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the lift's lone hydraulic cylinder is neatly tucked under the power-side runway. There's simply no better-looking and higher-reaching ​car hoist on the market than the HD-7PXW.

Features

  • 3,175-kg. maximum lifting capacity
  • Super tall rise of delivers 3.7 m of lifting height
  • Low sheen black color
  • Underside of runways are shielded by full-length covers
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 38 mm aircraft cable
  • Rugged 32 mm roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Ramps feature non-skid surface
  • Push-button pneumatic safety release

HD-7PXW Specifications

HD-7PXW specs diagram

Capacity

Lifting Capacity*
7000
*Max Capacity / Front Axle
3500
*Max Capacity / Rear Axle
3500

Rise

A - Min. Runway Height:
4.5
B - Max. Rise:
140
C - Max. Lifting Height:
145
Time to Full Rise:
60 seconds

Outside Dimensions

D - Overall Width:
110.25
E - Outside Length:
198
F - Overall Length:
224.5
G - Height of Columns:
158

Inside Dimensions

H - Width Between Columns:
100
I - Drive-Thru Clearance:
86.5

Runways

J - Runway Width:
19
K - Length of Runways:
188
L - Width Between Runways:
37.5 or 44.5
M - Runway Centerline:
56.5 or 63.5
N - Outside Edge of Runways:
75.5 or 82.5

Minimum Wheelbase

Rated Capacity:
135
75% Capacity:
115
50% Capacity:
95
25% Capacity:
80

Locking

Locking Positions:
30
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
208-230 VAC / 50-60 Hz / 1Ph
Noise:
45 dB

Shipping

Weight:
Dimensions:

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
